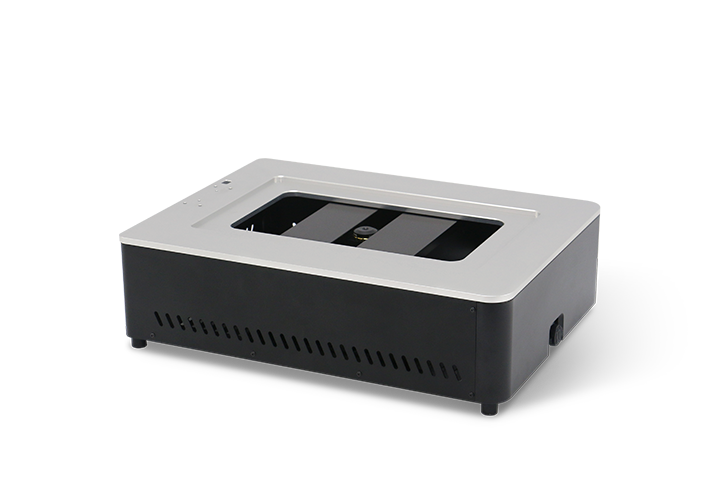

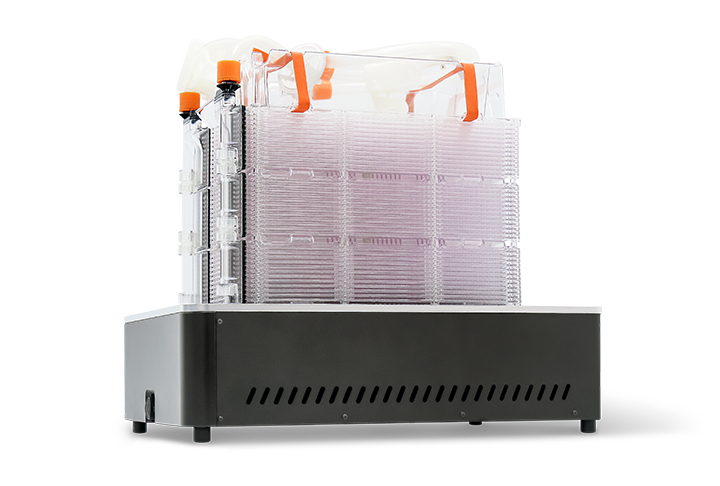

The Cell Stack Monitor is a multilayer cell culture observation system. We provide an advanced solution that meets the requirements of large-scale production and quality control of mammalian cells.

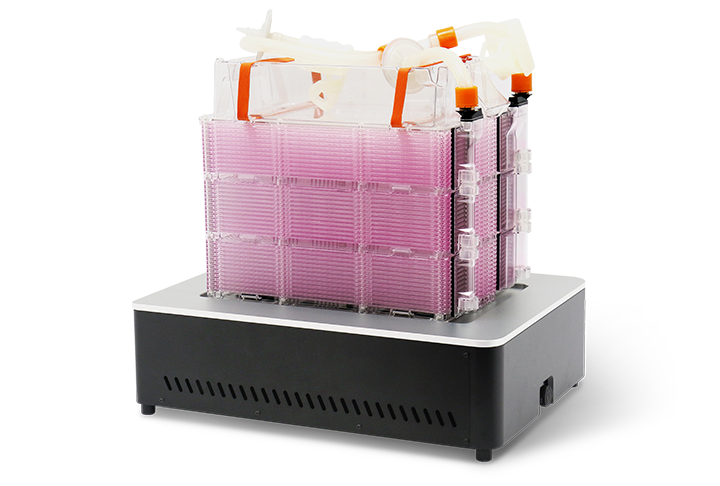

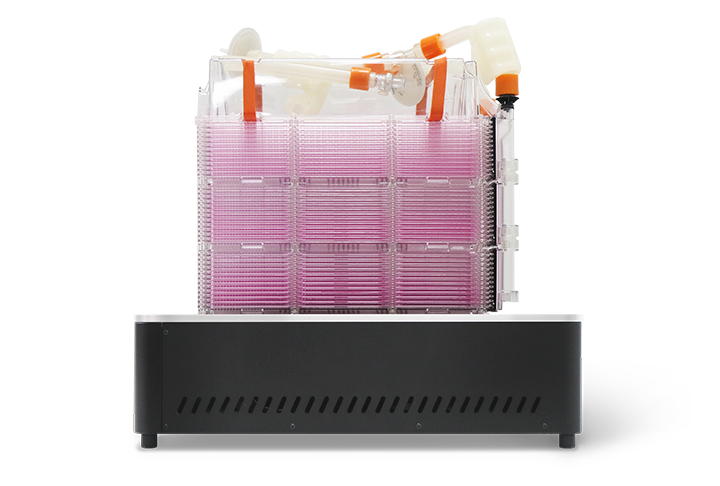

- Monitoring of cell production on multilayer culture systems

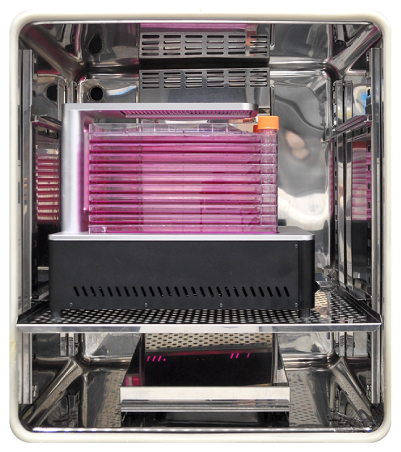

(Cellstack or Cellfactory type) - Real-time imaging inside the CO2 incubator

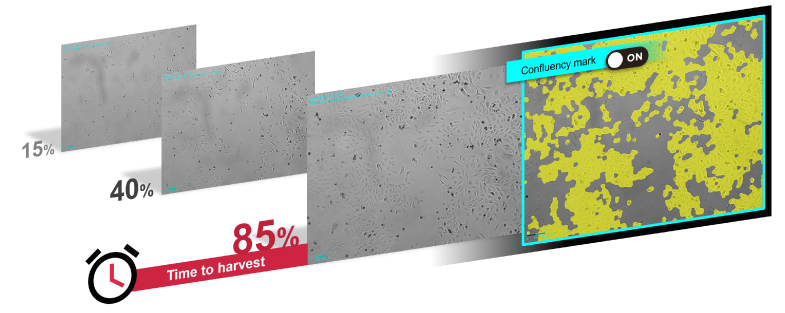

- Real-time measurement of cell confluence and proliferation
KEY FEATURES
Applications
- Cell culture monitoring
- Cell morphology
- Cell confluence
- Cell proliferation
- Cell culture quality control

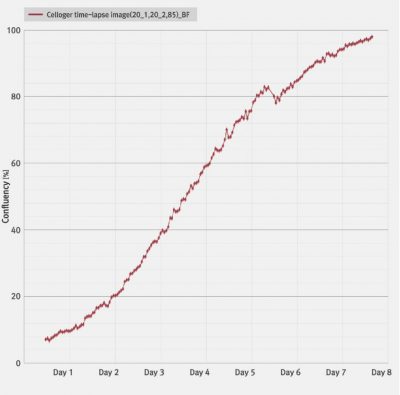

Confluence graph
- Real-time monitoring of live cells and multilayer observation (up to 10 layers)

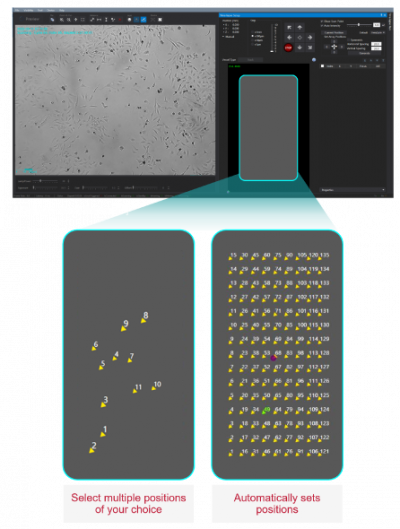

- Imaging and recording of multi-position time-lapse sequences
- Verification of cell quality and detection of confluence rate during culture
- Improved reproducibility for cell culture and large-scale cell production
- No need to remove cells from the incubator, eliminating contamination concerns
Specifications
| Specification | Details |
|---|---|
| Dimensions | 350 x 330 x 450 mm |
| Weight | 15 kg |
| Objective Lens | 2X |
| Camera | 5MP CMOS |
| Stage | Motorized XYZ stage |
| Operating environment | 10~40°C, 20~95% humidity |
| File export format | TIFF, AVI |
| Resolution | 2592 x 1944 pixel |
| Imaging positions | Multiple |

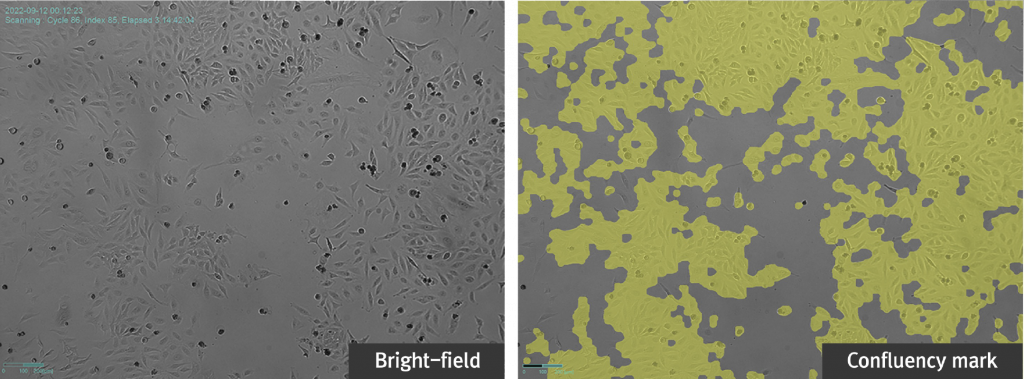

| Imaging mode | Bright-field |
| Vessel types | Multi-layer chamber up to 10 layers |
| Key functions | Autofocusing, manual focusing, time-lapse imaging, movie maker, confluency, growth curve |
